Pneumatic Gate Valve
FYL is factory located in Tianjin China. Factory specialized in producing different type of valves. Pneumatic Gate Valve is one of major products. Our products has good quality and price advantage, also company available to make OEM products. Welcome inquiries from all over the world.
Send Inquiry
Product Description

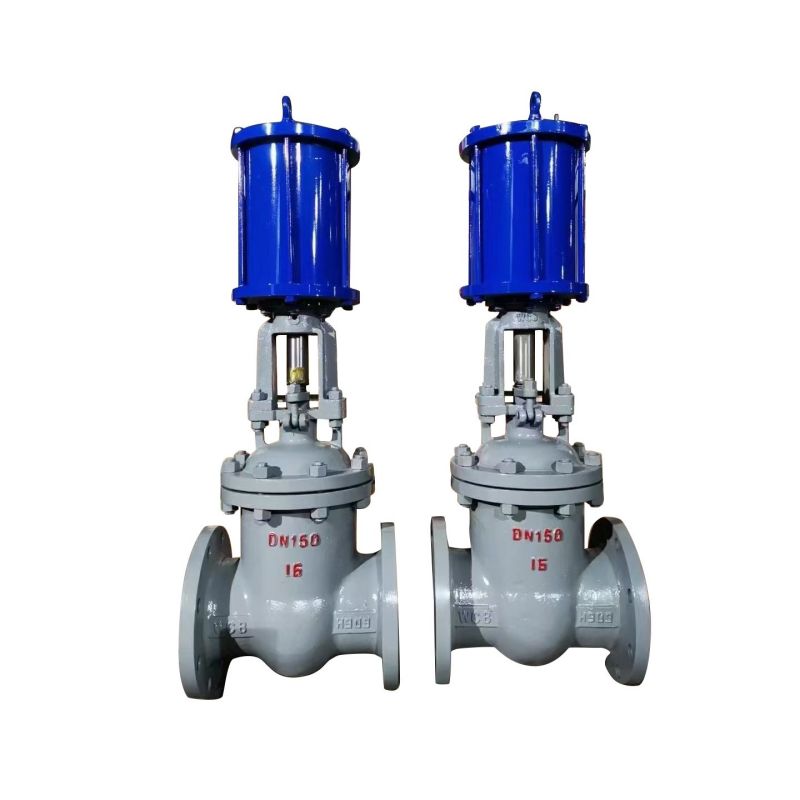

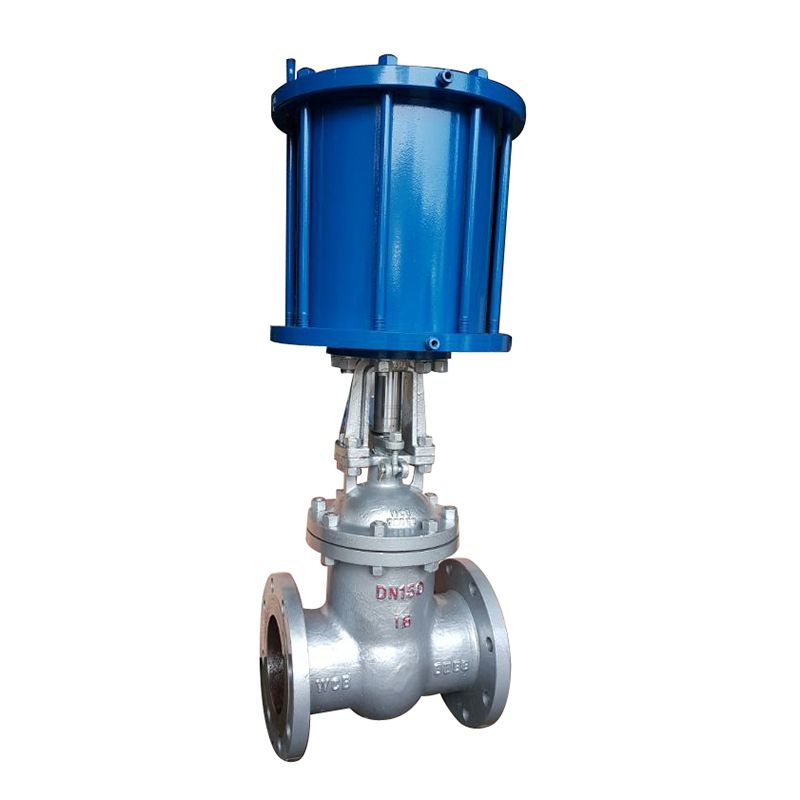

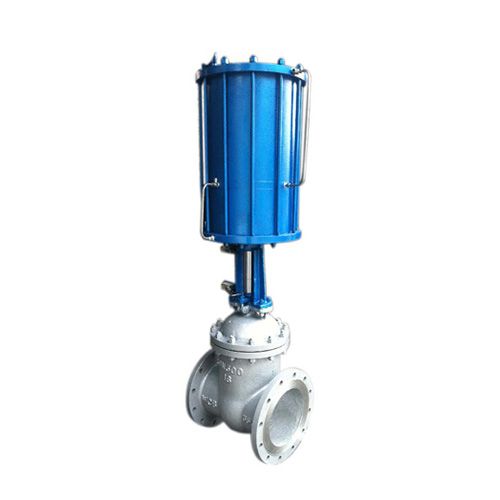

A Pneumatic Gate Valve is a heavy-duty industrial valve operated by compressed air. Unlike manual valves, these use a pneumatic actuator to move the internal gate (wedge) up or down, perpendicular to the fluid flow. This design ensures a completely unobstructed flow path when fully open, resulting in minimal pressure drop and high efficiency.At FYL , we combine traditional manufacturing expertise with modern pneumatic technology to create valves that excel in rapid-cycle environments and hazardous locations where electrical spark risks must be eliminated.
Key Technical Specifications
To ensure our Pneumatic Gate Valve meets your specific project needs, we offer a variety of configurations:
- Body Materials: Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Cast Iron, and Ductile Iron.
- Size Range: DN50 to DN2000 (Custom sizes available via OEM).
- Pressure Rating: PN10, PN16, PN25, Class 150, Class 300.
- Actuator Type: Double-acting or Single-acting (Spring Return).
- Accessories: Solenoid valves, limit switches, air filter regulators, and manual overrides.
|
SIZE |
D |
D1 |
L |
n-d |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DN(mm) |
in |
10 |
16 |
25 |
150LB |
10 |
16 |
25 |
150LB |
DIN |
BS |
ASME |
10 |
16 |
25 |
150LB |
|
50 |
2 |
165 |
150 |
110 |
120.7 |
150 |
178 |
177.8 |
4-19 |
4-19 |
4-19 |
|||||
|
65 |
2.5 |
185 |
180 |
125 |
139.7 |
170 |
190 |
190.5 |
4-19 |
8-19 |
4-19 |
|||||
|
80 |
3 |
200 |
190 |
145 |
152.4 |
180 |
203 |
203.2 |
8-19 |
8-19 |
4-19 |
|||||
|
100 |
4 |
220 |
220 |
235 |
230 |
180 |
180 |
190 |
190.5 |
190 |
229 |
228.6 |
8-19 |
8-22 |
8-19 |
|
|
125 |
5 |
250 |
250 |
270 |
255 |
210 |
210 |
220 |
215.9 |
200 |
254 |
254 |
8-19 |
8-26 |
8-22 |
|
|
150 |
6 |
285 |
285 |
300 |
280 |
240 |
240 |
250 |
241.3 |
210 |
267 |
266.7 |
8-23 |
8-26 |
8-22 |
|
|
200 |
8 |
340 |
340 |
360 |
345 |
295 |
295 |
310 |
298.5 |
230 |
292 |
292.1 |
8-23 |
12-23 |
12-26 |
8-22 |
|
250 |
10 |
405 |
405 |
425 |
405 |
350 |
355 |
370 |
362 |
250 |
330 |
330.2 |
12-23 |
12-28 |
12-30 |
12-26 |
|
300 |
12 |
460 |
460 |
485 |
485 |
400 |
410 |
430 |
431.8 |
270 |
356 |
355.6 |
12-23 |
12-28 |
16-30 |
12-26 |
|
350 |
14 |
520 |
520 |
555 |
535 |
460 |
470 |
490 |
476.3 |
290 |
381 |
381 |
16-23 |
16-28 |
16-33 |
16-29 |
|
400 |
16 |
580 |
580 |
620 |
595 |
515 |
525 |
550 |
539.8 |
310 |
406 |
406 |
16-28 |
16-31 |
16-36 |
16-29 |
|
450 |
18 |
640 |
640 |
635 |
565 |
585 |
577.9 |
330 |
432 |
432 |
20-28 |
20-31 |
16-32 |
|||
|
500 |
20 |
715 |
715 |
700 |
620 |
650 |
635 |
350 |
457 |
457.2 |
20-28 |
20-31 |
20-32 |
|||
|
600 |
24 |
840 |
840 |
815 |
725 |
770 |
749.3 |
390 |
508 |
508 |
20-31 |
20-38 |
20-35 |
|||
Why Choose FYL Pneumatic Gate Valve?
1. Superior Manufacturing & OEM Capability
Our factory, established in 2010, spans five major product categories. We don't just sell valves; we engineer them. Our technical team can provide specific designs based on your unique pressure, temperature, and media requirements.
2. Exceptional Durability and Safety
Every Pneumatic Gate Valve produced by FYL undergoes rigorous pressure testing. Because they are air-powered, they are inherently explosion-proof, making them the safest choice for petroleum and chemical processing plants.
3. Cost-Efficiency & Low Maintenance
By optimizing the internal sealing mechanism, we reduce wear and tear on the gate. This leads to a longer operational life and lower total cost of ownership for our clients.
Global Applications
The FYL Pneumatic Gate Valve is a versatile workhorse utilized across diverse sectors:
- Water & Sewage Treatment: Controlling high-volume flow in municipal plants.
- Chemical Industry: Handling corrosive fluids with stainless steel body options.
- Power Generation: Reliable isolation in cooling systems and ash handling.
- Oil & Gas: Safe operation in upstream and downstream processing.
- Urban Construction: Essential for large-scale HVAC and fire protection systems.
Comprehensive Service Commitment
Pre-sales: 7×24 Expert Consultation
We offer online quotes and technical consultations to help you select the right Pneumatic Gate Valve . Our team provides complete fluid control solutions, not just products.
In-sale: Transparency and Precision
We provide regular production updates and photos. Every FYL product is tracked from the foundry to the final assembly line to ensure timeline accuracy.
After-sales: Guaranteed Satisfaction
Our service doesn't end at delivery. We provide installation support and a comprehensive warranty. If you encounter any operational issues, our technicians are ready to assist remotely or through localized support partners.
Frequently Asked Questions (FAQ)
Q: Can the Pneumatic Gate Valve be operated manually if the air supply fails?
A: Yes. We can equip our valves with a manual handwheel override, allowing you to open or close the valve manually during power or air outages.
Q: Do you support customized branding for distributors?
A: Absolutely. FYL has extensive experience in OEM manufacturing. We can produce the Pneumatic Gate Valve with your branding and specific technical modifications.
Q: What is the typical lead time for a bulk order?
A: Standard orders typically ship within 15-30 days. For custom OEM designs, the timeline is determined after the technical drawings are finalized.
