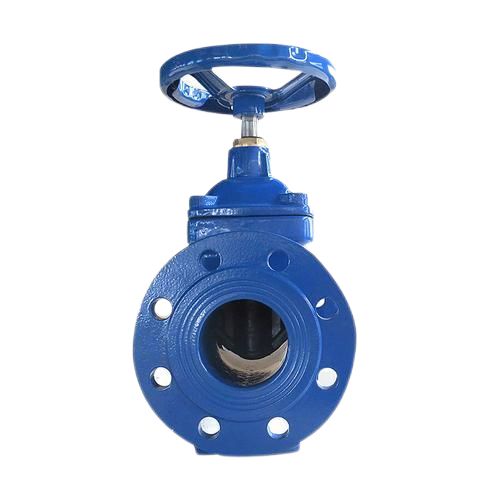

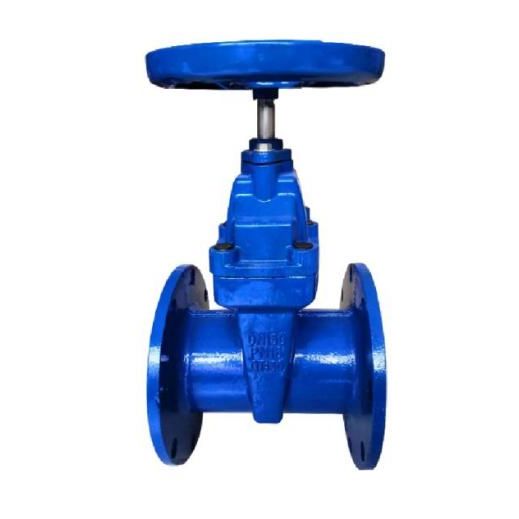

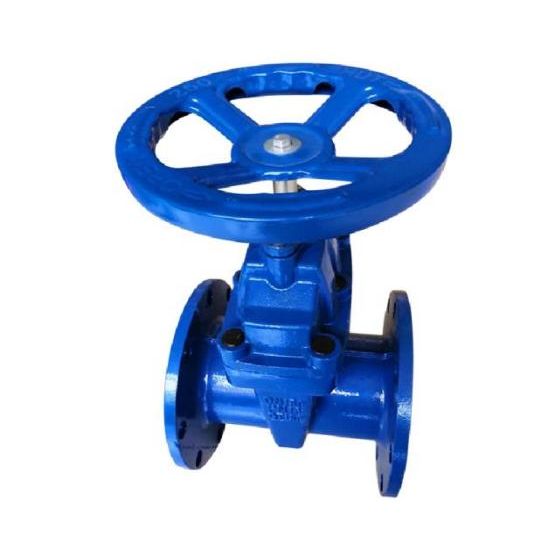

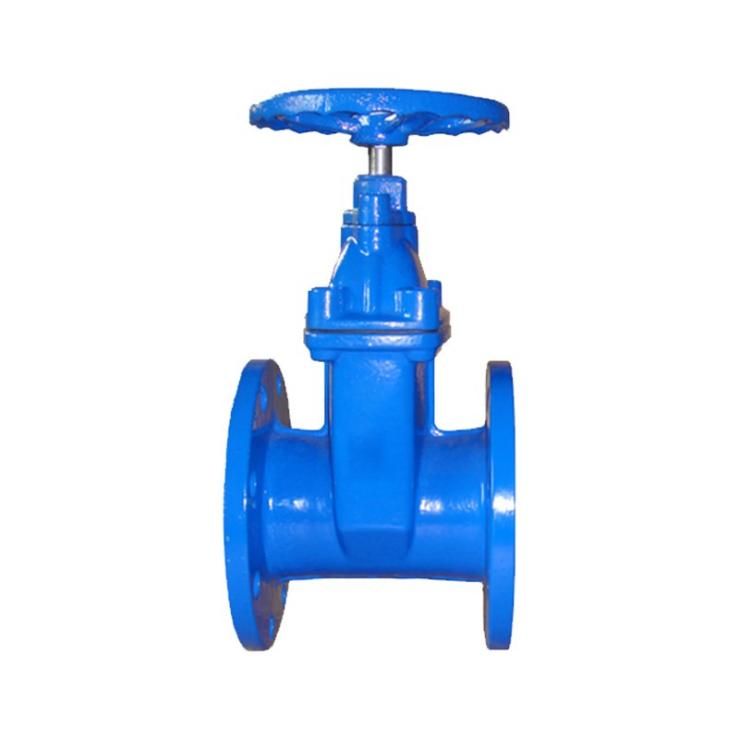

Resilient Seat Gate Valve

FYL is factory located in Tianjin China. Factory specialized in producing different type of valves. Resilient seat gate valve is one of major products. Our products has good quality and price advantage, also company available to make OEM products. Welcome inquiries from all over the world.

Product Description

• Resilient Seat Gate Valve

1. The overall bonnet has a dark rod design with a compact structure; the stem nut and the gate plate are two-body structure, no jamming occurs; straight passage, no leakage cavity; the valve stem seal adopts an "O"-shaped sealing ring.

2. It has excellent anti-corrosion performance. The inner and outer surfaces of the shell are sprayed with epoxy resin, and the inner surface is lined with enamel if necessary; the connecting bolts are hexagon socket bolts and the top is sealed with glue.

3. Reliable and hygienic epoxy resin conforms to the hygienic standard, gate plate is covered with rubber that meets the hygienic inspection; The stem, stem nut and other parts are made of stainless steel or bronze will not be corroded by water.

Application

Applicable to drinking water, water supply and drainage, sewage treatment, natural gas and coal gas, industry and food industries.

Parameter: Resilient seat gate valve

Main performance parameters

Product pictures and structure diagrams

Main Performance Parameters

Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa

Shell test: 1.5MPa, 2.4MPa, 3.75MPa

Seal test: 1.1MPa, 1.76MPa, 2.75MPa

Operating temperature: 0-80℃

Suitable medium: Water, Sewage, Air, Oil

Our Service

Pre-sales: Online quote supports customer need for urgent and small request, offering 7x24 service. Service provides product technical consultation, introduces and display products, and conducts product design and complete make solutions according to customer needs.

In-sale service: Follow up the production progress, give feedback to customers in time.

After-sales service: Whether clients are satisfied with the products, and solve the problems during installation.

Technical Advantages - FYL Resilient Seat Gate Valve

Advanced Material Selection

All FYL Resilient Seat Gate Valves utilize high-strength ductile iron body (GGG50) with full epoxy powder coating minimum 250 microns thickness. The rubber seat is made of EPDM or NBR certified for drinking water applications.

Zero Leakage Design

The combination of O-ring stem seal and fully vulcanized rubber seat ensures bubble-tight shut-off under all rated pressures. Each valve is 100% hydrostatically tested before leaving factory.

Long Service Life

Stainless steel stem (SS420 or SS304) and bronze stem nut eliminate galling and corrosion. The two-piece gate design reduces friction and wear, extending operational cycles beyond 10,000 open-close operations.

Additional Application Fields

Beyond standard applications, FYL Resilient Seat Gate Valve is also suitable for:

• Irrigation systems and agricultural water distribution
• Fire protection water supply networks
• Industrial cooling water circuits
• Desalination plant low-pressure sections
• Pulp and paper industry (with appropriate rubber grade)

Frequently Asked Questions

Q: What is the warranty period for FYL Resilient Seat Gate Valve?

A: We provide 18 months warranty from date of shipment or 12 months from date of commissioning, whichever comes first.

Q: Can you produce valves with other flange standards?

A: Yes, we can manufacture according to ANSI, BS, DIN, JIS, and SABS standards. Please provide your specific requirement.

Q: Do you offer actuators for your gate valves?

A: Yes, we can supply handwheel, gear operator, electric actuator, or pneumatic actuator upon request.

Q: How do I get a quotation?

A: Please send inquiry with size, quantity, pressure rating, and any special requirements. We will reply within 24 hours.

Q: Is sample order available?

A: Yes, sample order is welcome for quality evaluation. Sample lead time is 7-10 days.
