How Does a Single Girder Gantry Crane Improve Material Handling Efficiency?
Summary: Single girder gantry cranes are essential equipment for modern material handling, offering cost-effective solutions for loading, unloading, and transferring heavy loads across industrial sites. This article explores the structure, features, applications, and operational advantages of single girder gantry cranes while addressing common challenges and questions for buyers.
Table of Contents
- Overview of Single Girder Gantry Cranes
- Structure and Key Components
- Key Features and Benefits
- Industrial Applications
- How to Select the Right Single Girder Gantry Crane
- Installation and Maintenance Guidelines
- Frequently Asked Questions
- Contact Information
Overview of Single Girder Gantry Cranes

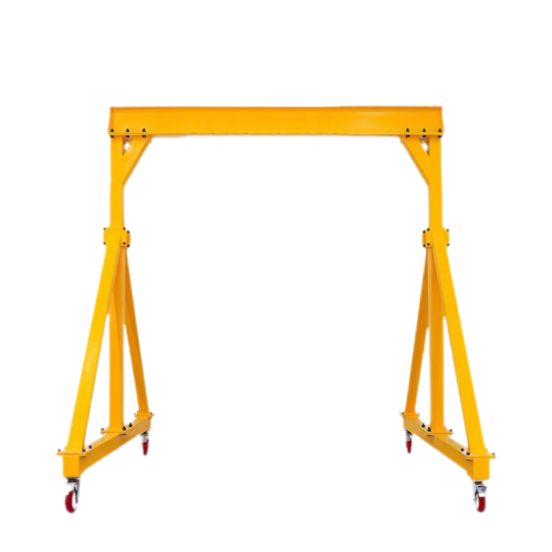

Single girder gantry cranes are lifting devices that operate with a single overhead beam (girder) mounted on legs moving along a track. Unlike double girder cranes, single girder designs are lightweight, space-saving, and ideal for moderate lifting tasks. They are commonly used in open cargo yards, warehouses, and industrial sites where operational flexibility and cost efficiency are crucial.
- Designed for moderate lifting capacities and wide application range
- Can be operated via handle control, wireless remote, or cab operation
- Customizable based on site dimensions and operational requirements
Structure and Key Components
The design of a single girder gantry crane emphasizes simplicity, stability, and ease of installation. Core components include:
| Component | Description |
|---|---|
| Main Girder | Supports the trolley and hoist, typically made of high-strength steel I-beams. |
| Trolley and Hoist | Moves along the main girder, lifting and transporting loads. Electric hoists are common for efficiency. |
| Legs and End Carriages | Connect the girder to wheels running on the runway track, ensuring stability and mobility. |
| Control System | Options include pendant control, wireless remote, or cabin-operated systems for precise handling. |
Key Features and Benefits
Single girder gantry cranes offer several advantages that directly address operational pain points in material handling:
- High Utilization Rate: Covers a large operational area without occupying excessive space.
- Lightweight and Stable: Reduces wheel pressure on tracks while providing safe and smooth lifting.
- Easy Installation: Modular design allows fast assembly and disassembly.
- Flexible Operation: Supports multiple control methods for varied industrial environments.
- Customizable Design: Non-standard cranes can be tailored for unique site dimensions.
Industrial Applications
Single girder gantry cranes are versatile and widely adopted across industries. Typical applications include:
- Warehouses and storage yards for loading and unloading goods
- Construction sites for moving medium-weight construction materials
- Manufacturing plants for transferring components along production lines
- Ports and logistics centers for container handling
- Maintenance areas for machine installation or heavy equipment servicing
How to Select the Right Single Girder Gantry Crane
Selecting the appropriate crane requires evaluating operational needs, site conditions, and lifting specifications. Key considerations include:
- Lifting Capacity: Match the crane to the heaviest load to ensure safety and efficiency.
- Span and Height: Ensure the crane covers the working area and clears obstacles.
- Control Method: Choose between manual, remote, or cabin operation based on operator preference and site layout.
- Frequency of Use: Heavy-duty applications may require reinforced components and more durable hoists.
- Customization Needs: Evaluate if a non-standard crane design is necessary for unique site conditions.
Installation and Maintenance Guidelines
Proper installation and regular maintenance maximize the operational lifespan of single girder gantry cranes. Recommendations include:
- Assemble the bottom beam using high-strength bolts on the bracket.
- Insert the main beam into the outrigger arm and secure the hoist on the I-beam.
- Perform load testing before the first operation to ensure stability and safety.
- Lubricate moving parts regularly to reduce wear and prevent downtime.
- Inspect electrical and mechanical systems periodically for early detection of issues.
Frequently Asked Questions
Q1: What is the maximum load capacity of a single girder gantry crane?
A: Load capacities vary, typically ranging from 1 ton to 20 tons depending on the manufacturer and customization options.
Q2: Can single girder gantry cranes operate outdoors?
A: Yes, they are suitable for both indoor and outdoor operations, but outdoor models require weatherproofing and corrosion-resistant coatings.
Q3: How does a single girder gantry crane compare to a double girder crane?
A: Single girder cranes are lighter, easier to install, and more cost-effective for moderate loads, while double girder cranes handle heavier loads with greater lifting height.
Contact Information
FYL offers a wide range of single girder gantry cranes tailored to your operational requirements. To learn more about specifications, customization options, or pricing, contact us today for professional assistance and timely support.
