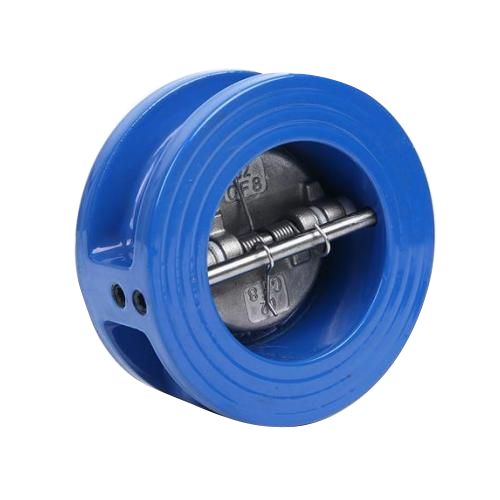

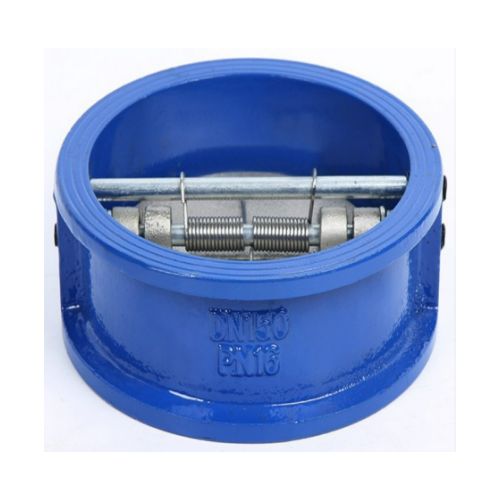

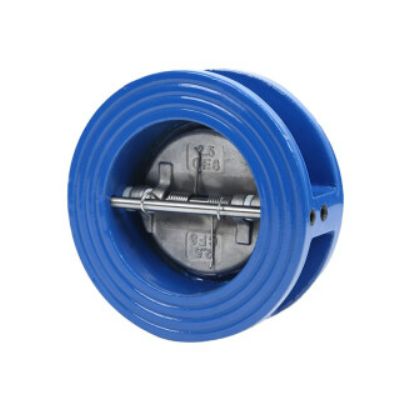

Wafer Butterfly Check Valve

Our FYL Wafer Butterfly Check Valve is engineered to overcome the limitations of traditional check valves. By adopting a built-in valve design and high-quality sealing components, we ensure the valve remains functional even under harsh temperature and pressure conditions, with the advantages of compact structure, easy installation and zero leakage.

Brand: FYL (Tianjin Fuyaolai Technology Co., Ltd.)
Design Standard: API 594, BS 1868, ASME B16.5, JIS B2212, DIN 2543, GB 9113
Sealing Type: Complete sealing (zero leakage in hydrostatic test)
Operating Temperature: -20℃~350℃ (depending on material)
Operation Mode: Automatic (Spring Return)

Key Features of the FYL Wafer Butterfly Check Valve

1. Compact Structure & Easy Maintenance

Small volume, light weight and compact structure, directly installable between two pipeline flanges without additional space. Key components are easy to disassemble, reducing maintenance difficulty and cost.

2. Fast Automatic Closing & Strong Anti-Water Hammer Ability

Adopts antithetic valve board design, which closes automatically quickly under the elastic torque of torsion spring. Effectively prevents medium backflow and reduces water hammer pressure, protecting pipelines and equipment from damage.

3. Excellent Sealing Performance & Zero Leakage

Uses high-quality sealing materials and precision processing technology. After strict hydrostatic test, the leakage is zero, avoiding material waste and environmental pollution, ensuring safe and stable pipeline operation.

4. High Rigidity & Safe Reliability

Valve body is made of high-quality materials with good rigidity and impact resistance, able to withstand long-term medium pressure and impact without deformation. Passes multiple strict quality tests before leaving the factory.

5. Low Fluid Resistance & Energy Saving

Streamlined internal flow channel design minimizes frictional resistance and pressure loss, reducing energy consumption of connected pump units, achieving environmental protection and energy saving dual value.

6. Flexible Installation & Wide Application

Can be installed horizontally or vertically, no additional support required due to light weight. Compatible with various media, suitable for multiple industrial fields.

Main connection dimensions

Main contour size

Addressing Buyer Concerns (FAQ)

Q: Is the quality of FYL Wafer Butterfly Check Valve reliable? Can it meet long-term operation needs?

A: Yes. We have a strict quality control system, and each valve passes multiple strict tests before leaving the factory. Adopting high-quality materials and advanced technology, it has stable performance and long service life, with a 12-month quality warranty.

Q: Can your valve be customized according to our actual needs?

A: Absolutely. Our professional R&D team can design and produce customized solutions according to your specific requirements, including nominal diameter, material, pressure level and other aspects, ensuring perfect matching with your pipeline system.

Q: What is the delivery time, and can it meet urgent orders?

A: Standard products: 7~15 working days; customized products: 15~30 working days. We provide urgent order service, adjusting production schedule to ensure on-time delivery.

Q: What after-sales services do you provide?

A: We offer 7×24-hour online technical consultation, installation guidance, troubleshooting and lifelong maintenance service. For quality problems within the warranty period, we provide free maintenance or replacement.

Q: What advantages do you have in price and performance compared with other manufacturers?

A: As a direct manufacturer, we have price advantages under the same quality. In performance, our valve has small fluid resistance, fast closing speed and excellent sealing, better than the industry average, with perfect customization and after-sales services.
