Triple Eccentric Butterfly Valve

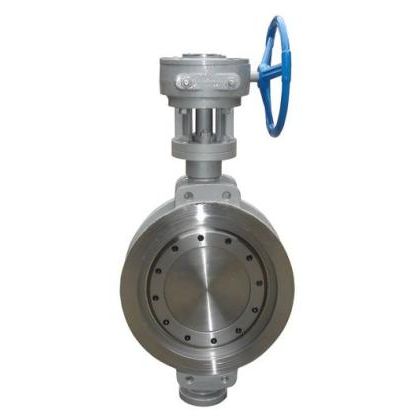

FYL Triple Eccentric Butterfly Valve is manufactured by FYL, a China Manufacturer, Factory, and Supplier located in Tianjin, China. This valve is designed for demanding industrial pipeline systems requiring long service life, tight sealing performance, and low maintenance. With advanced triple eccentric structure, it is widely used in petroleum, chemical, power generation, metallurgy, water supply and drainage systems.
Send Inquiry
Product Description
FYL Triple Eccentric Butterfly Valve is a high-performance industrial valve developed by FYL China Factory. It is engineered for severe working conditions such as high temperature, high pressure, and corrosive media. As a professional Manufacturer and Supplier, we integrate design, production, and OEM service to meet different international standards and project requirements. The valve structure significantly reduces friction during operation, improving durability and sealing stability over long-term use.
Company Profile
Tianjin Fuyaolai Technology Co., Ltd. is a comprehensive enterprise integrating design, manufacturing, and sales. As a China Factory and Supplier, we provide various types of industrial products with stable quality and OEM customization service.
Our company currently offers five major product categories, more than 50 series, and over 600 products, including valves, penstocks, mechanical bar screens, pipe fittings, and cranes. Our products are widely used in water conservancy, sewage treatment, chemical industry, food processing, urban construction, electric power, petroleum, and environmental protection industries.
We export to Europe, America, the Middle East, Southeast Asia, and many other regions. Based on the principle of "Customer First", we focus on strict quality control and international standards to deliver reliable products and services worldwide.
Working Principle (Triple Eccentric Structure)
The FYL Triple Eccentric Butterfly Valve adopts a three-dimensional eccentric design:
- First eccentricity: Shaft offset from disc sealing surface, reducing friction during opening and closing
- Second eccentricity: Shaft offset from pipeline center, improving flow efficiency
- Third eccentricity: Conical sealing surface design, achieving line contact sealing
This structure ensures that the sealing surface only contacts at the final closing stage, greatly reducing wear and achieving reliable sealing performance.
Key Features
- Triple eccentric design eliminates friction between seat and disc
- Long service life with reduced maintenance cost
- Excellent sealing performance under high temperature and pressure conditions
- Suitable for corrosive and non-corrosive media
- Low operating torque and energy-saving operation
- Bidirectional sealing capability
Technical Parameters
| Item | Specification |
|---|---|
| Size Range | DN50 – DN2000 |
| Pressure Rating | PN10 / PN16 / PN25 / Class 150–600 |
| Body Material | Cast Steel / Stainless Steel / Alloy Steel |
| Disc Material | Stainless Steel / Alloy Steel |
| Seat Type | Metal Seat / Soft-Hard Composite Seat |
| Temperature Range | -29°C to 550°C |
| Connection Type | Flange / Wafer / Lug |
| Operation Type | Manual / Electric / Pneumatic |
Application Fields
- Oil and gas transmission systems
- Power plants and thermal energy systems
- Chemical and petrochemical industries
- Water supply and drainage systems
- Wastewater treatment plants
- Metallurgy and industrial pipelines
Product Advantages
The Triple Eccentric Butterfly Valve provides significant advantages compared to conventional butterfly valves. The reduced friction design improves sealing stability and extends service life. It also reduces operational torque, which helps lower energy consumption in automated systems. The structure is suitable for frequent operation and long-term continuous use in industrial environments.
Manufacturing Strength
We are a professional manufacturer based in Tianjin, China. Our factory was established in 2010, specializing in water conservancy machinery and industrial equipment. With advanced production capabilities, we offer standardized products and customized OEM solutions.
- Over 600 product models across multiple categories
- Strong OEM and custom design capability
- International standard production system
- Export experience to global markets including Europe, America, and Southeast Asia
Quality Control
Each FYL Triple Eccentric Butterfly Valve undergoes strict quality inspection, including pressure testing, sealing performance testing, and dimensional inspection to ensure stable operation under industrial conditions.
Buyer Concerns
Q1: Can you provide OEM service?
Yes, we provide full OEM service including design modification, material selection, and branding support.
Q2: Is the valve suitable for high temperature environments?
Yes, the valve is designed for high-temperature applications up to 550°C depending on material selection.
Q3: How do you ensure sealing performance?
The triple eccentric structure ensures metal-to-metal sealing with minimal wear, tested under pressure conditions before delivery.
Q4: What industries is it most suitable for?
It is widely used in oil, gas, chemical, power generation, and water treatment industries.
Service System
- Pre-sales service: 7×24 technical consultation, quotation support, and solution design
- In-sales service: Production tracking and timely progress updates
- After-sales service: Installation guidance and technical problem support

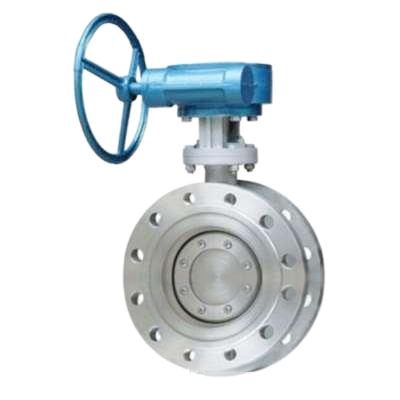

FYL Triple Eccentric Butterfly Valve series products are long service life, energy-saving butterfly valves. Its structure adopts three-dimensional eccentric design.This product is composed of valve body, disc, seat, stem, transmission mechanism and other main components. Therefore, it is widely used in pipelines with corrosive media such as metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas, and water supply and drainage.
Triple Eccentric Butterfly Valve Feature
Uses three eccentric structures, the valve seat and the butterfly board no abrasion, has tighter sealing property, achieved zero divulges.
Bears the high pressure, air-corrosive applicable scope is broad
Disc sealing has double layers of hard and soft, which has the advantages of double sealing of hard and soft seals, and has excellent sealing performance no matter in low temperature or high temperature conditions.
Main Technical Parameter
|
Nominal Diameter |
DN（mm） |
50～2000 |
50～500 |
|||
|---|---|---|---|---|---|---|
|
Pressure |
PN（MPa） |
0.6 |
1.0 |
1.6 |
2.5 |
4.0 |
|
Test Pressure |
Shell |
0.9 |
1.5 |
2.4 |
3.75 |
6.0 |
|
Seal |
0.66 |
1.1 |
1.76 |
2.75 |
4.4 |
|
|
Temperature |
Carbon Steel:-29℃～425℃ Stainless Steel-40℃～600℃ |
|||||
|
Medium |
Air, water, steam, gas, oil, acid, alkali, salt with weak corrosive media, etc. |
|||||
|
Operation |
Hand wheel, pneumatic, electric, worm gear |
|||||
|
Diameter |
Main Size |
Dand n-Ød |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.0MPa |
1.6MPa |
2.5MPa |
||||||||||||
|
mm |
in |
Short L |
Long L |
H1 |
H |
D |
D1 |
n-Ød |
D |
D1 |
n-Ød |
D |
D1 |
n-Ød |
|
50 |
2 |
108 |
150 |
350 |
112 |
165 |
125 |
4-Ø18 |
165 |
125 |
4-Ø18 |
165 |
125 |
4-Ø18 |
|
65 |
2.5 |
112 |
170 |
370 |
115 |
185 |
145 |
4-Ø18 |
185 |
145 |
4-Ø19 |
185 |
145 |
8-Ø18 |
|
80 |
3 |
114 |
180 |
380 |
120 |
200 |
160 |
8-Ø18 |
200 |
160 |
8-Ø19 |
200 |
160 |
8-Ø18 |
|
100 |
4 |
127 |
190 |
420 |
138 |
220 |
180 |
8-Ø18 |
220 |
180 |
8-Ø19 |
235 |
190 |
8-φ22 |
|
125 |
5 |
140 |
200 |
460 |
164 |
250 |
210 |
8-Ø18 |
250 |
210 |
8-Ø19 |
270 |
220 |
8-Ø26 |
|
150 |
6 |
140 |
210 |
555 |
175 |
285 |
240 |
8-Ø22 |
285 |
240 |
8-φ22 |
300 |
250 |
8-Ø26 |
|
200 |
8 |
152 |
230 |
760 |
200 |
340 |
295 |
8-Ø22 |
340 |
295 |
12-Ø23 |
360 |
310 |
12-Ø26 |
|
250 |
10 |
165 |
250 |
830 |
243 |
395 |
350 |
12-Ø22 |
405 |
355 |
12-Ø26 |
425 |
370 |
12-Ø30 |
|
300 |
12 |
178 |
270 |
895 |
250 |
445 |
400 |
12-Ø22 |
460 |
410 |
12-Ø26 |
485 |
430 |
16-Ø30 |
|
350 |
14 |
190 |
290 |
950 |
280 |
505 |
460 |
16-Ø22 |
520 |
470 |
16-Ø26 |
555 |
490 |
16-Ø33 |
|
400 |
16 |
216 |
310 |
1190 |
305 |
565 |
515 |
16-Ø26 |
580 |
525 |
16-Ø31 |
620 |
550 |
16-Ø36 |
|
450 |
18 |
222 |
330 |
1255 |
350 |
615 |
565 |
20-Ø26 |
640 |
585 |
20-Ø31 |
670 |
600 |
20-Ø36 |
|
500 |
20 |
229 |
350 |
1305 |
380 |
670 |
620 |
20-Ø26 |
715 |
650 |
20-Ø34 |
730 |
660 |
20-Ø36 |
|
600 |
24 |
267 |
390 |
1340 |
445 |
780 |
725 |
20-Ø30 |
840 |
770 |
20-Ø37 |
845 |
770 |
20-Ø39 |
|
700 |
28 |
292 |
430 |
1520 |
480 |
895 |
840 |
24-Ø30 |
910 |
840 |
24-Ø37 |
960 |
875 |
24-Ø42 |
|
800 |
32 |
318 |
470 |
1710 |
530 |
1015 |
950 |
24-Ø33 |
1025 |
950 |
24-Ø41 |
1085 |
990 |
24-Ø48 |
|
900 |
36 |
330 |
510 |
1810 |
580 |
1115 |
1050 |
32-Ø33 |
1125 |
1050 |
28-Ø41 |
1185 |
1090 |
28-Ø48 |
|
1000 |
40 |
410 |
550 |
1960 |
650 |
1230 |
1160 |
32-Ø36 |
1255 |
1170 |
28-Ø43 |
1320 |
1210 |
28-Ø56 |
|
1200 |
48 |
470 |
630 |
2250 |
760 |
1455 |
1380 |
32-Ø39 |
1485 |
1390 |
32-Ø49 |
1530 |
1420 |
32-Ø56 |
|
1400 |
56 |
530 |
710 |
2435 |
850 |
1675 |
1590 |
36-Ø42 |
1685 |
1590 |
36-Ø49 |
1755 |
1640 |
36-Ø62 |
|
1600 |
64 |
600 |
790 |
2780 |
1030 |
1915 |
1820 |
40-Ø48 |
1930 |
1820 |
40-Ø56 |
1975 |
1860 |
40-Ø62 |
|
1800 |
72 |
670 |
870 |
3020 |
1230 |
2115 |
2020 |
44-Ø48 |
2130 |
2020 |
44-Ø56 |
2195 |
2070 |
44-Ø70 |
|
2000 |
80 |
760 |
950 |
3270 |
1350 |
2325 |
2230 |
48-Ø48 |
2345 |
2230 |
48-Ø62 |
2425 |
2300 |
48-Ø70 |
