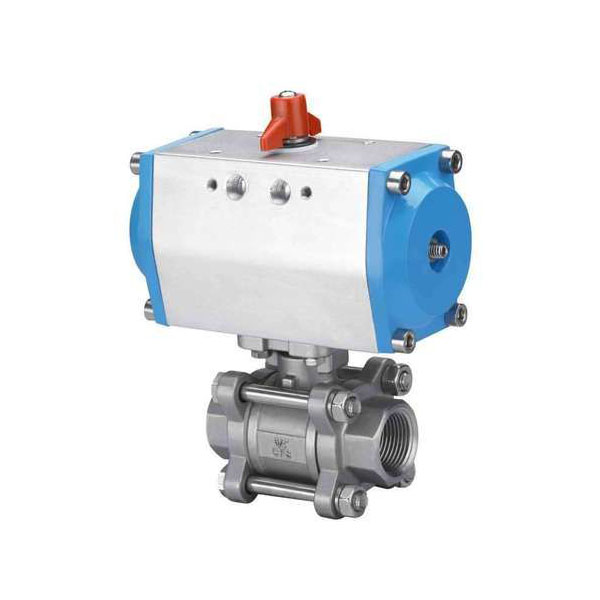

Why Is the Pneumatic Three-Pieces Stainless Steel Ball Valve Essential for Modern Industrial Applications
The Pneumatic Three-Pieces Stainless Steel Ball Valve has become a crucial component in industrial fluid control systems. Known for its durability, ease of maintenance, and precision operation, this valve type is widely used in chemical, pharmaceutical, food, and water treatment industries. In this article, we will explore its design, advantages, applications, selection criteria, and maintenance practices to help you understand why it is essential for modern industrial applications.
Table of Contents
- Introduction to Pneumatic Three-Pieces Stainless Steel Ball Valve
- Structure and Design Features
- Key Advantages
- Applications Across Industries
- Selection Guide
- Installation and Maintenance Tips
- Comparison with Other Valves
- FAQ
- Conclusion
Introduction to Pneumatic Three-Pieces Stainless Steel Ball Valve
The Pneumatic Three-Pieces Stainless Steel Ball Valve is a type of ball valve that features three main components: the body, the end caps, and the ball. Actuated by a pneumatic system, it provides automated opening and closing, offering high reliability and operational efficiency. FYL, a trusted manufacturer, provides high-quality valves that meet stringent industrial standards.
- Automated operation via pneumatic actuator
- High corrosion resistance due to stainless steel construction
- Easy maintenance with a three-piece design
- Reliable sealing to prevent leaks
Structure and Design Features
The design of the Pneumatic Three-Pieces Stainless Steel Ball Valve emphasizes accessibility, durability, and precision. The three-piece structure allows the valve to be disassembled without removing the entire pipeline, making maintenance straightforward and cost-effective.
| Component | Material | Function |
|---|---|---|
| Valve Body | Stainless Steel 304/316 | Provides the main pressure containment and houses the ball |
| Ball | Stainless Steel 316 | Controls flow with 90° rotation |
| End Caps | Stainless Steel 304/316 | Facilitates maintenance and replacement |
| Pneumatic Actuator | Aluminum Alloy | Provides automated operation |
Key Advantages
Choosing a Pneumatic Three-Pieces Stainless Steel Ball Valve offers numerous benefits for industrial systems:
- Durability: Stainless steel construction resists corrosion, high temperatures, and pressure fluctuations.
- Low Maintenance: Three-piece design allows for easy cleaning and replacement of parts without shutting down the system.
- Automation: Pneumatic actuation reduces manual labor and improves operational efficiency.
- Leak-proof: High-quality seals ensure zero leakage even under high pressure.
- Versatility: Suitable for gas, liquid, and steam applications.
Applications Across Industries
The versatility of the Pneumatic Three-Pieces Stainless Steel Ball Valve makes it a preferred choice across various sectors:
- Chemical Industry: Handles aggressive chemicals safely.
- Pharmaceutical Industry: Meets sanitary standards for fluid control.
- Food & Beverage: Ensures hygienic fluid transfer.
- Water Treatment: Controls water flow efficiently and reliably.
- Oil & Gas: Suitable for high-pressure pipelines.
Selection Guide
When selecting a Pneumatic Three-Pieces Stainless Steel Ball Valve, consider the following criteria:
| Criteria | Description |
|---|---|
| Material Grade | Stainless steel 304 or 316 depending on fluid corrosiveness |
| Valve Size | Based on pipeline diameter and flow rate |
| Pressure Rating | Ensure compatibility with system operating pressure |
| Actuator Type | Pneumatic double-acting or spring-return |
| End Connection | Threaded, flanged, or welded based on pipeline setup |
Installation and Maintenance Tips
Proper installation and maintenance ensure the longevity and performance of your valve:
- Ensure correct alignment with pipeline to avoid stress.
- Use appropriate gaskets and sealants during installation.
- Regularly inspect actuator operation and lubrication.
- Replace worn seals promptly to prevent leakage.
- Clean internal components periodically for hygienic applications.
Comparison with Other Valves
Compared to traditional valves, the Pneumatic Three-Pieces Stainless Steel Ball Valve offers several advantages:
| Valve Type | Operation | Maintenance | Leak Resistance |
|---|---|---|---|
| Gate Valve | Manual | Medium | Moderate |
| Globe Valve | Manual | High | Good |
| Two-Piece Ball Valve | Manual / Pneumatic | Medium | Good |
| Three-Piece Ball Valve (FYL) | Pneumatic | Low | Excellent |
FAQ
1. What are the pressure limits of a Pneumatic Three-Pieces Stainless Steel Ball Valve?
Most FYL valves are rated for pressures up to 1000 PSI (69 bar), but always check the specifications for the specific model.
2. Can these valves handle corrosive fluids?
Yes, stainless steel construction allows safe handling of corrosive chemicals, including acids and alkalis.
3. How often should maintenance be performed?
It depends on usage and fluid type. Generally, inspection every 6–12 months is recommended.
4. Are pneumatic actuators compatible with all pipeline systems?
Pneumatic actuators require a compressed air source and are compatible with most standard pipeline setups.
5. Can the valve be manually operated in case of pneumatic failure?
Yes, FYL valves often feature a manual override option for emergency operation.
Conclusion
In conclusion, the Pneumatic Three-Pieces Stainless Steel Ball Valve by FYL offers unmatched reliability, ease of maintenance, and adaptability for modern industrial applications. Its three-piece design, coupled with pneumatic automation, ensures efficient operation, minimal downtime, and excellent leak resistance. Industries ranging from chemical to food processing benefit from its versatility and durability. For businesses seeking high-performance fluid control solutions, investing in a FYL Pneumatic Three-Pieces Stainless Steel Ball Valve is a smart choice. Contact us today to learn more about our range of valves and receive personalized guidance for your industrial needs.
