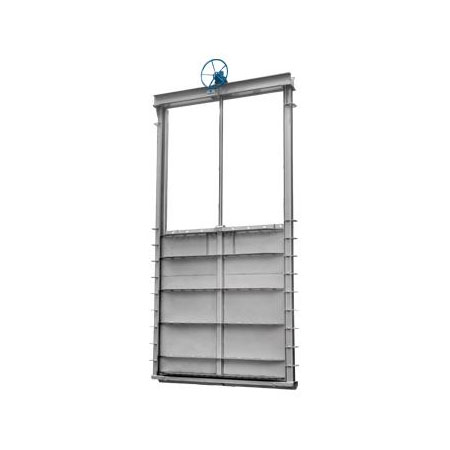

How should I choose a Steel Penstock Gate?
2025-08-08
Steel Penstock Gates are crucial for controlling water flow in water treatment facilities like dams. Choosing the right gate requires understanding the technical specifications, material properties, and operational requirements. This ensures you receive a gate that best meets your needs.
Why Choose a Steel Penstock Gate?
Steel is the gold standard for penstock pipes because of its excellent strength-to-weight ratio, resistance to water pressure, and long-term durability, suitable for use in extreme temperatures and environments
Product Specifications
Before purchasing, please carefully review the following non-negotiable parameters:
1. Material Composition and Grades
| Steel Grade | Yield Strength (MPa) | Corrosion Resistance | Best Use Case |
| ASTM A36 | 250 | Moderate | Low-pressure freshwater systems |
| ASTM A572 Gr50 | 345 | High | Medium-pressure dams/irrigation |
| ASTM A516 Gr70 | 380 | Very High | High-pressure hydroelectric plants |
| Duplex Stainless | 550 | Extreme | Saltwater/chemical environments |
2.Corrosion Protection Requirements
Steel Penstock Gates are epoxy-coated to meet freshwater standards and minimize wear. Hot-dip galvanizing is essential for acidic or wastewater treatment.
3.Cathodic Protection
Steel Penstock Gates are suitable for use in seawater immersion.
4. Pressure and Load Ratings
The product must be tested at a pressure exceeding 1.5 times the maximum working pressure. Ensure that the valve's design head is compatible with the reservoir's pressure.
5. Gate Size and Operating Clearance
The tolerance for end face dimensions must be ≤ ±3 mm to prevent leakage. Valve seat alignment requires machining accuracy of 0.1 mm/m, with side seals of 1.5-3 mm and bottom seals of 2-4 mm.
FAQ
How do I choose between cast steel and prefabricated steel penstock gates?
Cast steel gates are suitable for complex shapes with widths less than 4 meters and uniform thickness. Prefabricated steel gates are cost-effective for projects with longer spans and can be custom reinforced for high-load areas. For lifts exceeding 30 meters, prefabricated gates with welded ribs provide superior structural integrity.
What certifications should I require from the supplier?
A factory certificate, coating inspection report, and load test video are required. For drinking water projects, compliance with NSF and ANSI 61 standards is required.
It is important to understand how to purchase a steel penstock gate. If you would like more information, please feel free to contact Tianjin Fuyaolai Technology Co., Ltd.!
