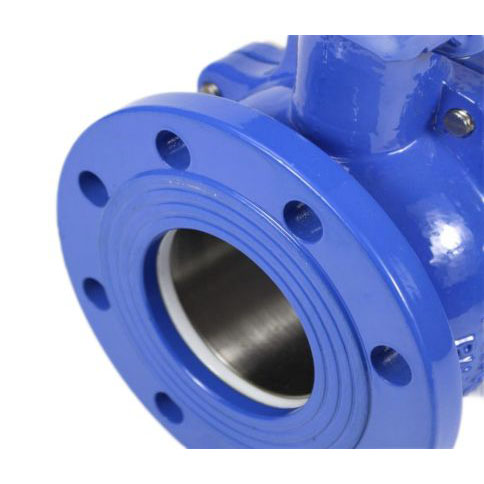

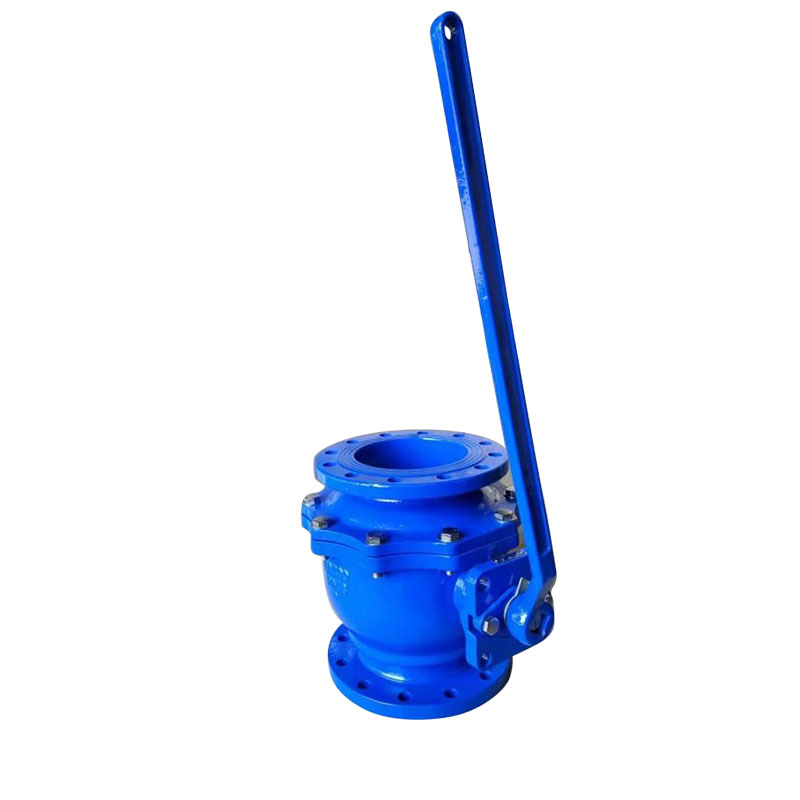

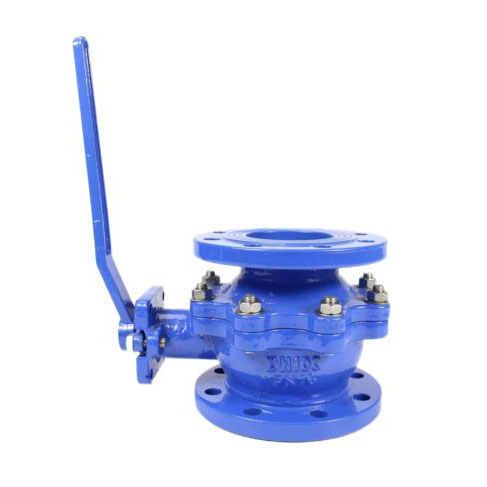

Flange Ball Valve

Are you looking for flange ball valves with low price and good quality? FYL can be your ideal supplier! After more than ten years of development history, our production line is complete and powerful enough to provide wholesale and free samples, and can also be customized according to your needs. Come and contact us!

Send Inquiry

Product Description

Simply put, flange ball valve and gate valve are the same type of valves, but the difference is that its closing piece is a ball, which rotates around the center line of the valve body, thus achieving opening and closing.

Flange ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. Do you want to know more about it? We are a professional manufacturer of hydraulic machinery and equipment, and we are very willing to introduce the characteristics of this product to you!

Features

1. Convenient: The operation of flange ball valve is very convenient. FYL has improved the product from a professional perspective on the basis of good quality, making the opening and closing speed of the valve very fast and convenient. From full open to full closed, it only needs to rotate 90°, which is more friendly for situations that require remote control.

2. Labor-saving maintenance: The overall structure of the flange ball valve is very simple, and the sealing ring is generally movable, which is convenient to disassemble and replace. Of course, it is also durable enough and does not require frequent maintenance or replacement. This is our consideration for the actual use needs of customers, to reduce the manpower and material costs in use for you.

3. Isolation seal: When the flange ball valve is fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. The medium passes through and will not cause erosion of the valve sealing surface. It is also a design that is more friendly to the extension of service life.

Performance specification
Nominal pressure	Nominal diameter	Temperature	Medium
PN10/PN16/125LB/150LB	DN40-DN300	≤80℃	Water, Source Water, Sewage, Air, Oil

Flange Ball Valve

Main external and connection dimension

SIZE		L			D					n-Ød
SIZE		DIN	BS	ANSI	DIN		BS		ANSI	DIN		BS		ANSI
DN	in	PN10/16		125/150LB	PN10	PN16	PN10	PN16	125/150LB	PN10	PN16	PN10	PN16	125/150LB
15	1/2"	115	108	108	95		95		89	4-14		4-14		4-16
20	3/4"	120	117	117	105		105		98.6	4-14		4-14		4-16
25	1"	125	127	127	115		115		108	4-14		4-14		4-16
32	1-¼"	130	140	140	140		140		117	4-19		4-19		4-16
40	1-1/2"	140	165	165	150		150		127	4-19		4-19		4-16
50	2”	150	178	178	165		165		152	4-19		4-19		4-18
65	2-1/2"	170	190	190	185		185		178	4-19		4-19		4-18
80	3”	180	203	203	200		200		191	8-19		8-19		4-18
100	4”	190	229	229	220		220		229	8-19		8-19		8-18
125	5”	325	356	356	250		250		245	8-19		8-19		8-22
150	6”	350	394	394	285		285		279	8-23		8-23		8-22
200	8”	400	457	457	340		340		343	8-23	12-23	8-23	12-23	8-22
250	10˜	450	533	533	395	405	395	405	406	12-23	12-28	12-23	12-28	12-26
300	12”	500	610	610	445	460	445	460	483	12-23	12-28	12-23	12-28	12-26
