Ductile Iron Sleeve Coupling

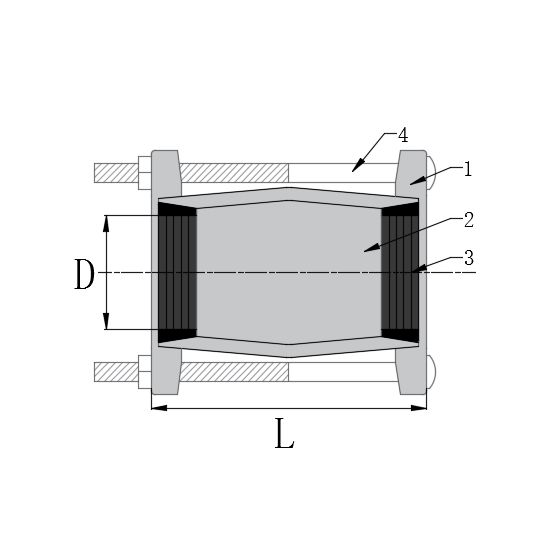

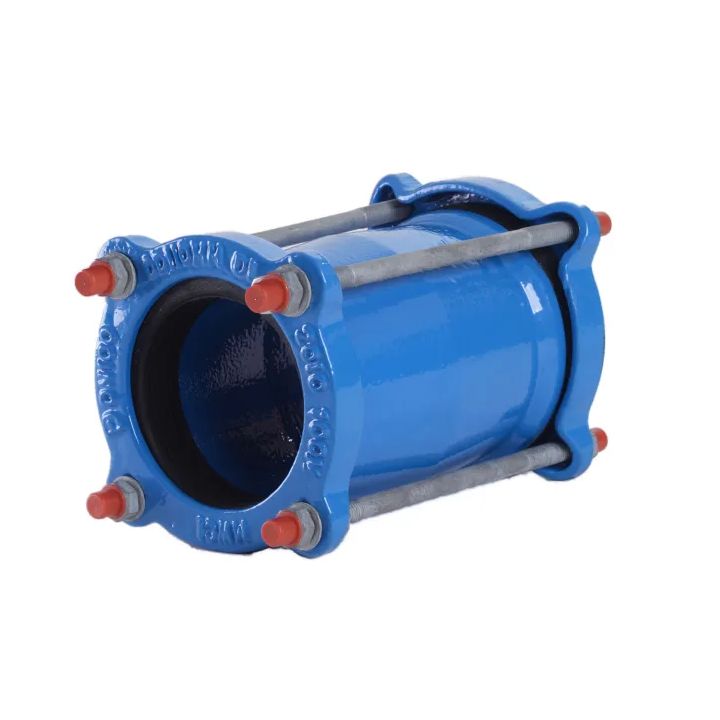

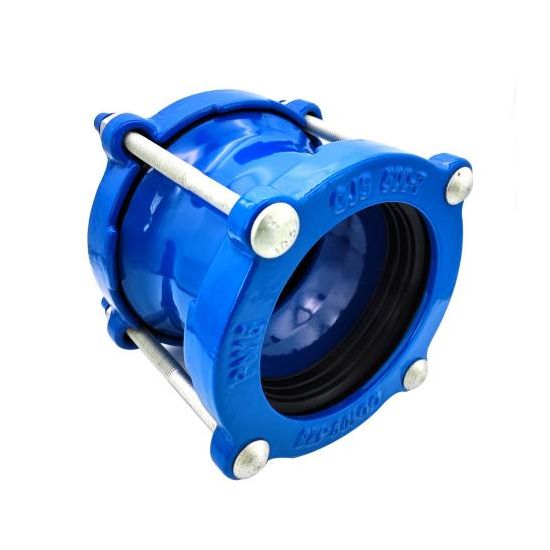

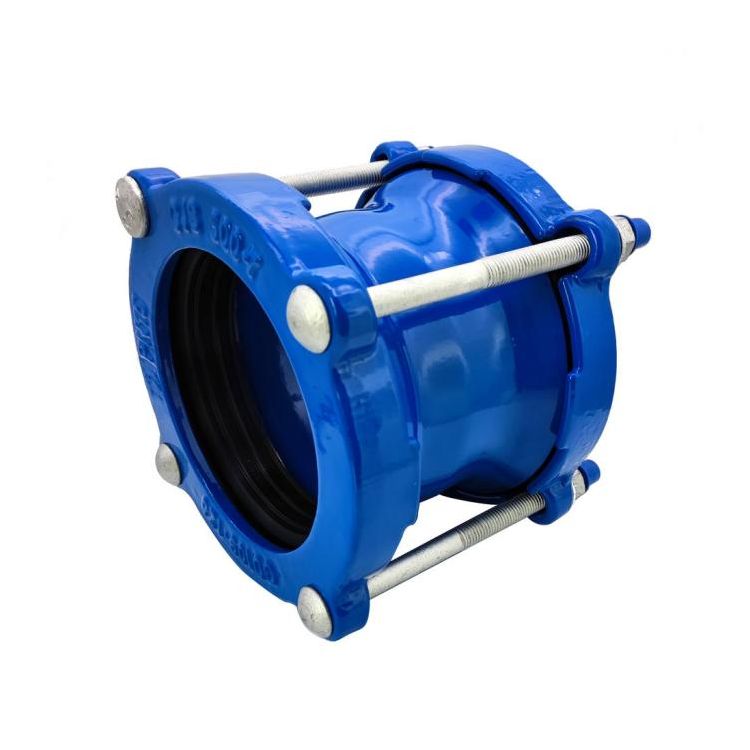

As one of FYL's core products, the Ductile Iron Sleeve Coupling is a mechanical coupling consisting of two ductile iron sleeves, inner and outer flanges, and several bolts. Its three core elements are clearly defined: high-strength ductile iron material, precise torque transmission, and suitability for various industrial applications. It is a crucial component for connecting two shafts and ensuring stable mechanical transmission.

The ductile iron sleeve is a core component of the Ductile Iron Sleeve Coupling. Made from high-quality ductile iron through precision casting, it offers significantly improved tensile strength, toughness, and wear resistance compared to ordinary cast iron. This effectively withstands impact loads during long-term transmission, preventing deformation or breakage and fundamentally ensuring the product's lifespan. The inner and outer flanges, serving as the connection ports of the Ductile Iron Sleeve Coupling, are precisely machined and polished to ensure a tight fit on the shaft. High-strength bolts secure the connection, ensuring precise alignment of the two shafts and preventing loosening or misalignment during transmission, thus achieving efficient torque transmission.

The upper flange of this product is designed with an integrated casting process, which provides stronger sealing and effectively prevents dust and impurities from entering the interior and affecting transmission. The middle sleeve is treated with anti-corrosion to adapt to complex working conditions such as humidity and corrosiveness. The lower bolt connection adopts an anti-loosening design, which further improves the operational stability of the product and truly achieves comprehensive quality assurance from top to bottom.

Installation and Maintenance Guide

1. Installation Steps

We provide detailed installation instructions to ensure the Ductile Iron Sleeve Coupling is installed correctly and operates stably. The specific steps are as follows:

• Pre-installation Inspection: Measure the actual dimensions of the shaft and coupling inner bore to ensure the fit clearance meets design requirements. Clean the shaft, bore, and coupling surfaces of oil, rust, and burrs to avoid scratching the mating surfaces during assembly.

• Half-Coupling Assembly: Select the appropriate assembly method according to the coupling size. Small sizes can be hammered in (lubricating oil should be applied to the mating surfaces, and a pad should be used to assist hammering). Large sizes or interference fits can be assembled using a press or temperature difference method to ensure the half-coupling is installed in the designated position on the shaft.

• Alignment Connection: Initially align the two half-couplings so that the centers of the two shafts are roughly aligned and the end faces are parallel. After inserting the bolts, use a dial indicator or laser alignment instrument to adjust the coaxiality, ensuring radial runout ≤0.05mm to avoid vibration during operation.

• Bolt Tightening: Use a torque wrench to gradually tighten the bolts in 2-3 stages according to the design torque value. Double nuts and spring washers can be used to prevent loosening, ensuring a secure connection between the upper, middle, and lower structures of the Ductile Iron Sleeve Coupling, eliminating any risk of loosening.

2. Routine Maintenance

Proper maintenance can extend the service life of the Ductile Iron Sleeve Coupling. We recommend customers perform the following maintenance regularly:

• Regular Inspection: Weekly inspection of the coupling body for cracks, loose bolts, and tight key connections. Monthly inspection of radial runout and end face runout during rotation, promptly identifying and addressing any abnormalities.

• Lubrication Maintenance: Apply grease to bolted connections and flange contact surfaces every 2-3 months to prevent rust and wear, ensuring smooth transmission.

• Environmental Protection: Avoid prolonged exposure of the coupling to humid, acidic, or alkaline environments. If used in such environments, regularly inspect the surface anti-corrosion coating and reapply as necessary.

• Troubleshooting: If abnormal noise or excessive vibration is found during operation of the coupling, the machine should be stopped immediately for inspection. Check for problems such as coaxiality deviation, loose bolts or worn parts, and repair or replace damaged parts in a timely manner.

FAQ

Q1: What industries and equipment is the Ductile Iron Sleeve Coupling suitable for?

A1: This product has a wide range of applications, mainly used in water conservancy, sewage treatment plants, chemical industry, food industry, urban construction, power, petroleum, environmental protection, and other fields. It can be used with various mechanical equipment such as centrifugal pumps, fans, compressors, reducers, and cranes to connect two shafts and transmit torque.

Q2: What is the approximate service life of the Ductile Iron Sleeve Coupling?

A2: Under normal installation, use, and maintenance conditions, the product has a service life of 5-8 years. If used in a favorable working environment, the service life can be extended to more than 10 years. Our products are made of high-quality ductile iron and advanced technology, and their durability is far superior to ordinary cast iron couplings.

Q3: Do you offer OEM services for the Ductile Iron Sleeve Coupling?

A3: Yes, we support OEM customization services. Our technical team can customize Ductile Iron Sleeve Couplings according to customers' specific needs, including specifications, materials, processes, and structures, to meet their unique installation and transmission requirements.

Q4: What do you do if the product has quality issues?

A4: Our products have a one-year warranty. During the warranty period, if any quality issues arise due to non-human factors, we will repair or replace the product free of charge. After the warranty period, we will provide preferential repair services and spare parts supply, and arrange professional technicians to assist customers in resolving the problem.

Q5: Is the installation of Ductile Iron Sleeve Coupling difficult? Does it require professional personnel?

A5: The product installation is not difficult. We will provide customers with detailed installation instructions and video guidance. Ordinary construction personnel can complete the installation after simple training. If required by the customer, we can also arrange professional technicians to provide on-site installation guidance to ensure installation quality.
