A Type Double Girder Gantry Crane

FYL, a manufacturer and supplier from China, has products including A type double girder gantry crane. This product is a special equipment, and we have made a sufficiently stable design for it to ensure efficiency and safety in work. If you have any customized needs, you can also contact us for design communication.

Send Inquiry

Product Description

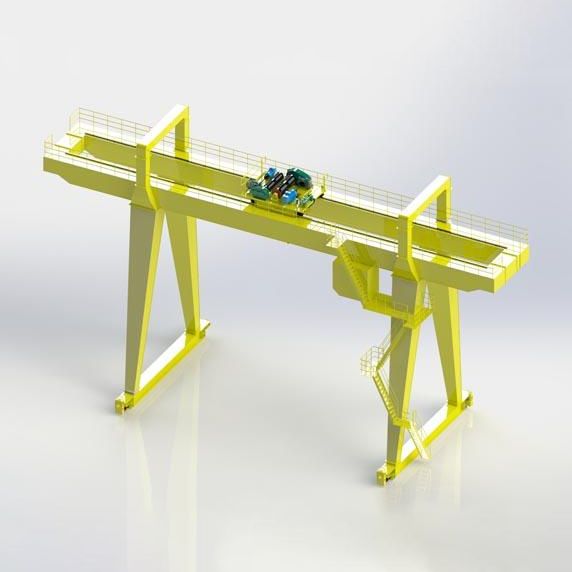

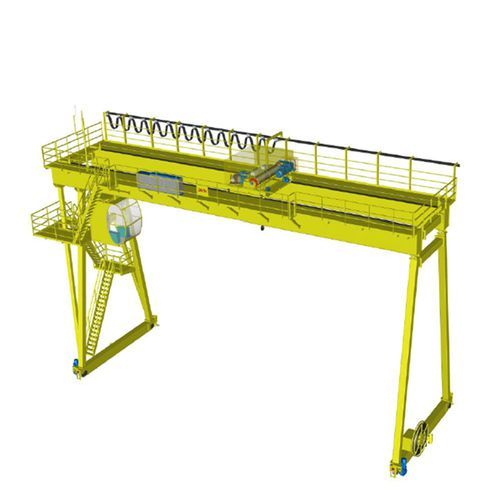

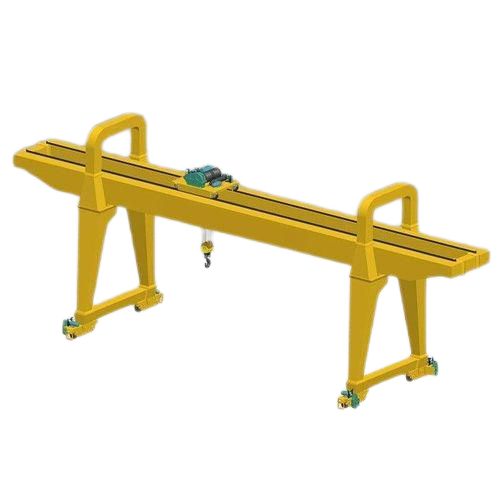

The A Type Double Girder Gantry Crane manufactured by FYL adopts an off-track box-type double girder design with a light trolley structure. It features a variable frequency speed control system that enables smooth acceleration and deceleration, with adjustable operation speeds to suit different working conditions. The crane starts and stops smoothly, allows precise positioning, and employs a direct connection mechanism to reduce failure points, improve transmission efficiency, and save energy.

Technical Advantages

Stable and reliable performance, lightweight structure, and low wheel load suitable for various working environments.
Compact lifting trolley design equipped with hardened gear reducer, rolling pulleys, and welded drum for enhanced durability.
Large hook operation range, adaptable for diverse lifting tasks, improving production efficiency.
Customizable design and OEM service available according to customer requirements.
Manufactured to international standards ensuring long-term service life.

Product Specifications

Model	Span (m)	Lifting Capacity (t)	Lifting Height (m)	Working Class	Power (kW)
A Type Double Girder Gantry Crane	10-30	5-50	6-30	A3-A5	7.5-37

Applications

The A Type Double Girder Gantry Crane is widely used in water conservancy, sewage treatment plants, chemical industry, food processing, urban construction, electric power, petroleum, and environmental protection projects, providing stable and efficient lifting solutions for a variety of operational scenarios.

Customer Cases

A Southeast Asian chemical plant purchased the FYL double girder gantry crane for raw material handling, achieving stable and energy-efficient operation.
A domestic water conservancy project utilized the FYL A Type Double Girder Gantry Crane to lift large sluice gate components, ensuring safe and reliable handling.
A food processing company implemented this crane to optimize production line logistics, reducing labor costs and improving operational efficiency.

Why Choose FYL

We are a comprehensive enterprise integrating design, manufacturing, and sales. FYL has over a decade of experience in mechanical equipment production, offering more than 600 products, including valves, penstocks, mechanical bar screens, pipe fittings, and cranes. We focus on customer needs, enforce strict quality control, and deliver A Type Double Girder Gantry Crane with stable performance and long service life.

About Tianjin Fuyaolai Technology Co., Ltd.

Established in 2010, our factory specializes in water conservancy machinery and equipment. Our professional technical team can provide customized design and OEM production based on client requirements. We actively expand into international markets, exporting to Europe, America, the Middle East, and Southeast Asia, earning consistent praise from clients worldwide.

Frequently Asked Questions (FAQ)

Q: Do you provide custom designs?
A: Yes, we can provide tailor-made designs and OEM services according to customer requirements.
Q: Which industries is this crane suitable for?
A: It is suitable for water conservancy, electric power, chemical, food processing, urban construction, and environmental protection projects.
Q: What is the typical delivery time?
A: Depending on order and specifications, delivery is generally completed within 30-60 days.

A Type Double Girder Gantry Crane

Technical Specifications

Actual size and lifting weight depends on client

Lifting	Main hook	t	5					10
	Aux. hook		―					―
Span S		m	18	22	26	30	35	18	22	26		30	35
Lifting Height			10			10		10			10
			―					―
Wording duty			A5					A5
Speed	Main hook	m/min	0.88～8.8					0.73～7.3
	Aux. hook		―					―
	Trolley Traveling		2.6～26					2.6～26
	Crane Traveling		3.6～36					3.6～36
Limit dimension	C1	m	1300			1300		1500			1500
	C2		1000			1000		1200			1200
main dimension	H		12685			12685		12915			12915
	H1		10000			10000		10000			10000
	H2		320			340		340			340
	B		6978			6978		7116			7116
	W		1450					1450
	K		6000			3000		6000	6000
Maximum wheel load		KN	95	105	115	125	135	130	140	150		160	170
Total Power		KW	27.8		36.8			38	47
Recommended steel rail			43kg/m					43kg/m
Power Supply			3-Phose AC.50Hz 3800V					3-Phose AC.50Hz 3800V
